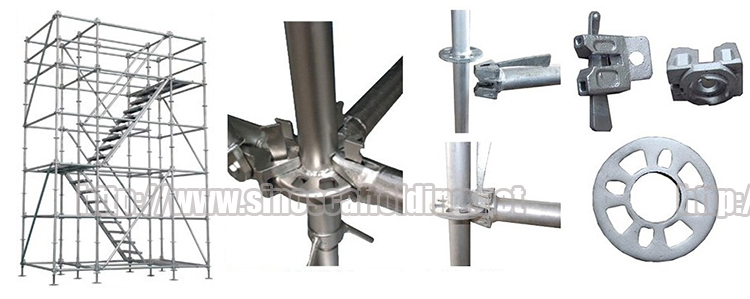

1. Ringlock scaffolding is one of the most popular types of scaffolding systems in the world. As a modular scaffolding system, it is extremely versatile and can be erected from the ground up or suspended.
2. Versatile in different heights and sizes,Ringlock Scaffolding can almost meet requirements of any constructions.
3. The Ringlock scaffolding has a fleetly erection speed so that it save builder's time and labor cost.
4. Ringlock scaffolding has reliable and durable welding part and precision cast components.
| ||||
| ||||

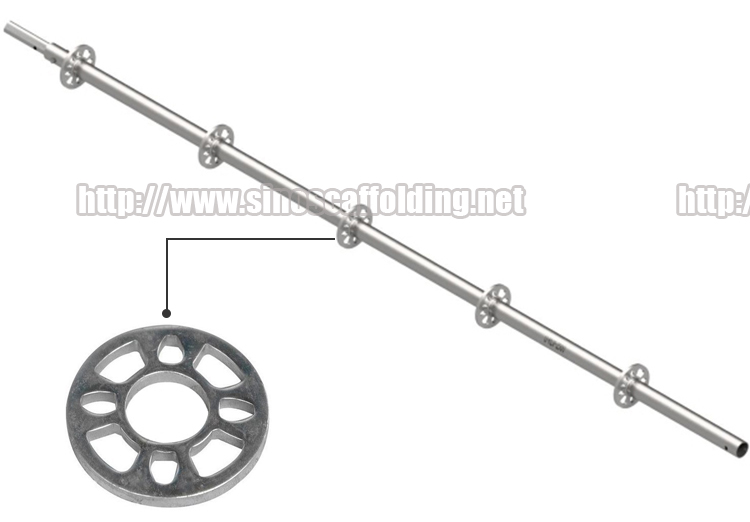

1. Steel Galvanized Ringlock Vertical Standard Use: The vertical standard bears the loads from the scaffold down to the earth, providing vertical support for the scaffolding. The standard has rosettes at 50 cm interval, a spigot on the top and drilled holes at both end. | ||||
 | ||||
Item Number | Length(m) | Diameter(mm) | Tube Thickness (mm) | Surface Treatment |
SSC-R1S-2000 | 2 | 48.3 | 3.2 | Hot dip galvanized/Powder coated |
SSC-R1S-1500 | 1.5 | |||
SSC-R1S-1000 | 1 | |||
SSC-R1S-500 | 0.5 | |||
2. Steel Galvanized Ringlock Horizontal Ledger Use: The horizontal ledgers in several lengths are used as horizontal supports for loads and planks. Ledgers are also used as guard rails. | ||||
 | ||||
| Item Number | Length(m) | Diameter(mm) | Tube Thickness(mm) | Surface Treatment |
| SSC-R2L-307 | 3.07 | 48.3 | 3.2 | Hot dip galvanized/Powder coated |
| SSC-R2L-257 | 2.57 | |||
| SSC-R2L-207 | 2.07 | |||
| SSC-R2L-157 | 1.57 | |||
| SSC-R2L-140 | 1.4 | |||
| SSC-R2L-109 | 1.09 | |||
3.Steel Galvanized Ringlock Bay Brace Use: Bay braces are used for lateral bracing, increasing stiffness of the scaffold. Bay braces can also be used as guard rails in conjunction with the stair system. | ||||
 | ||||
| Item Number | Size(mm) | Diameter(mm) | Tube Thickness(mm) | Surface Treatment |
| SSC-R3D-307 | 2.0*3.07 | 48.3 | 2.5 | Hot dip galvanized/Powder coated |
| SSC-R3D-257 | 2.0*2.57 | |||
| SSC-R3D-207 | 2.0*2.07 | |||
| SSC-R3D-157 | 2.0*1.57 | |||
| SSC-R3D-109 | 2.0*1.09 | |||
| SSC-R3D-073 | 2.0*0.73 | |||
 | ||||
